The Logo will be used in the future versions of Titan OS. It could also be used as a watermark.

​
Requirements

  1. Format: White PNG with transparent background
  2. Size: At least 640px on the longer side
  3. File size: Should not exceed 1Mb

​
Design considerations

  • There should be no padding between the logo and the file boundaries — the logo should extend fully to the edges, regardless of its aspect ratio. No empty space around the edges allowed.
  • The logo must be white and contain no colour, but it could have semi-transparent white elements.
  • It is strongly recommended to use the full logo, including the channel name. The logo may appear alongside logos of other channels, so it should remain clear and easily identifiable.

​

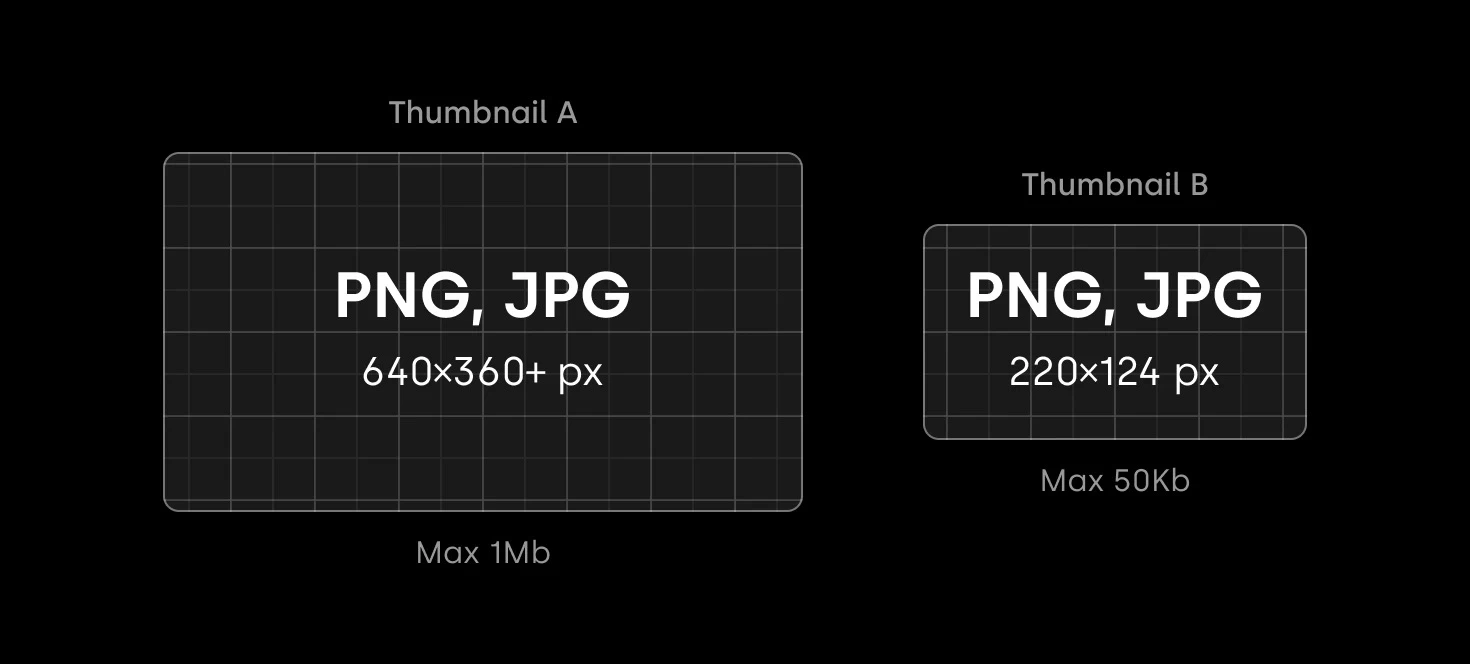

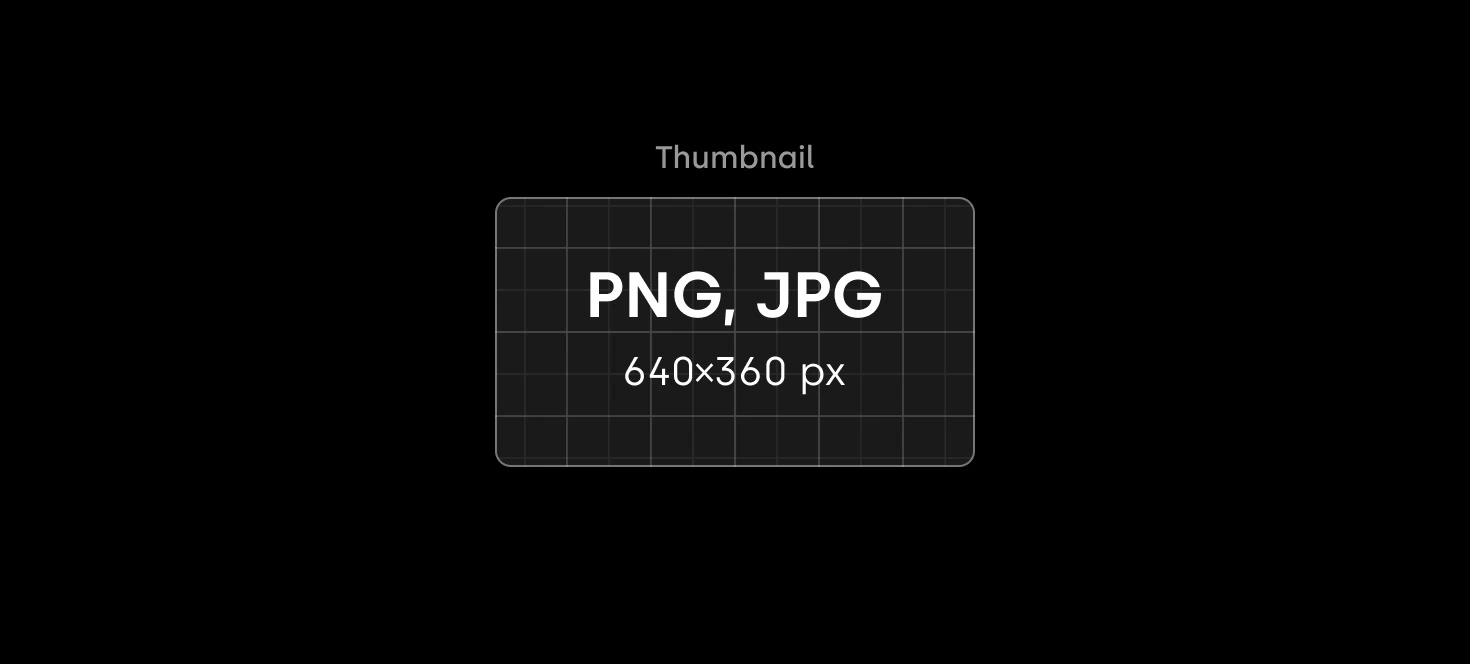

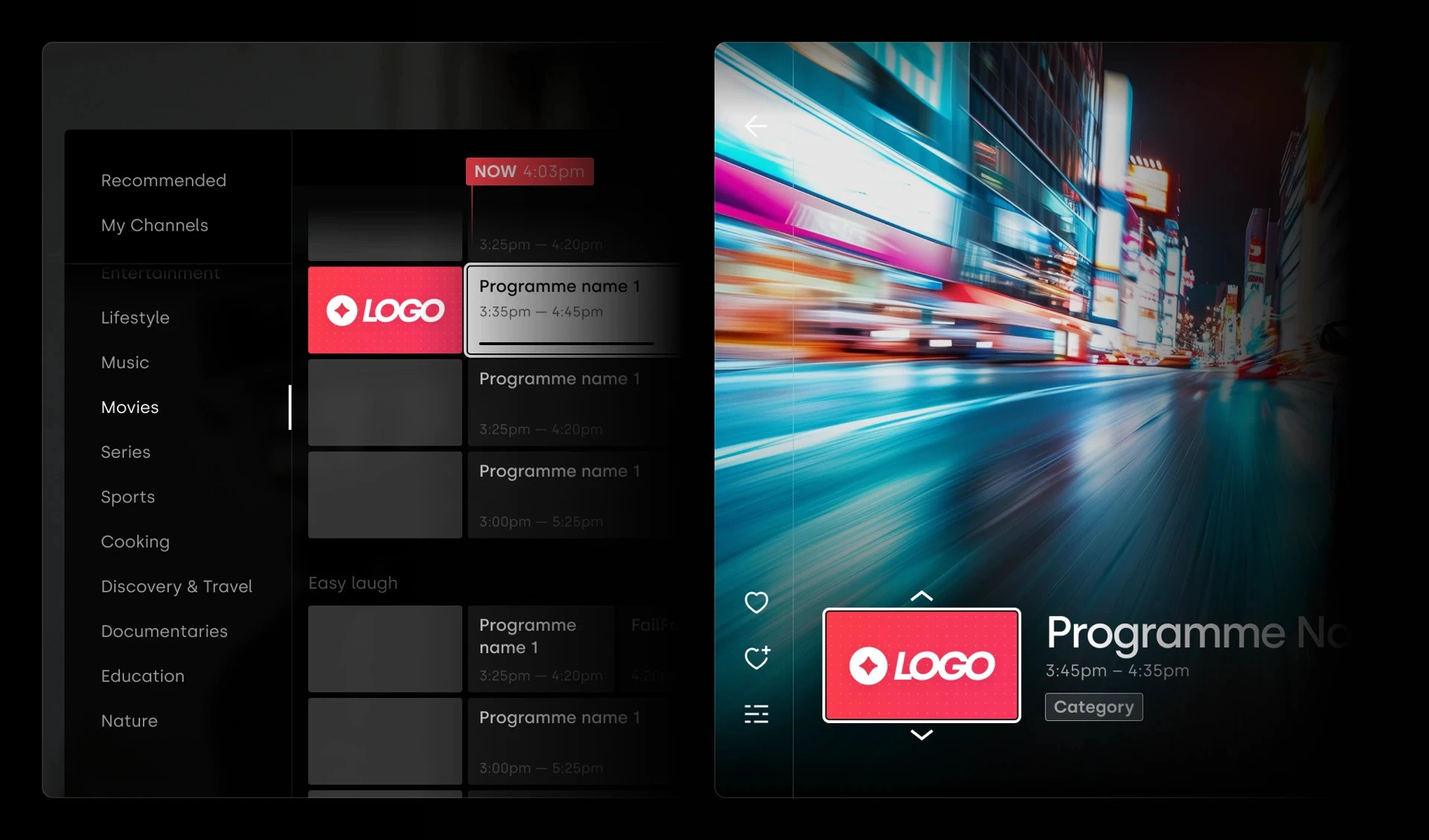

Thumbnail

We request partners to provide the channel Thumbnail to be used in the EPG and search results. Due to technical reasons, we kindly ask partners to prepare two separate Thumbnail files, differing primarily in file size.

​
Requirements

  1. Big Thumbnail (mandatory)
    • Format: JPG or PNG, No transparency
    • Size: At least 640x360px
    • Aspect ratio: 16:9
    • File size: Should not exceed 1Mb
  2. Small Thumbnail (mandatory)
    • Format: JPG or PNG, No transparency
    • Size: Exactly 220x124px ⚠️
    • Aspect ratio: 16:9
    • File size: Should not exceed 50Kb ⚠️

​
Design considerations

  • The best way to make the channel easily recognisable is to use a logo over a contrasting background.
  • Ensure the logo is large, clear and (optional) centred.
  • Don’t add any additional text or elements to the thumbnail.
  • Both Thumbnail A and Thumbnail B should share the same design if possible, taking into consideration the file size limitation.

​

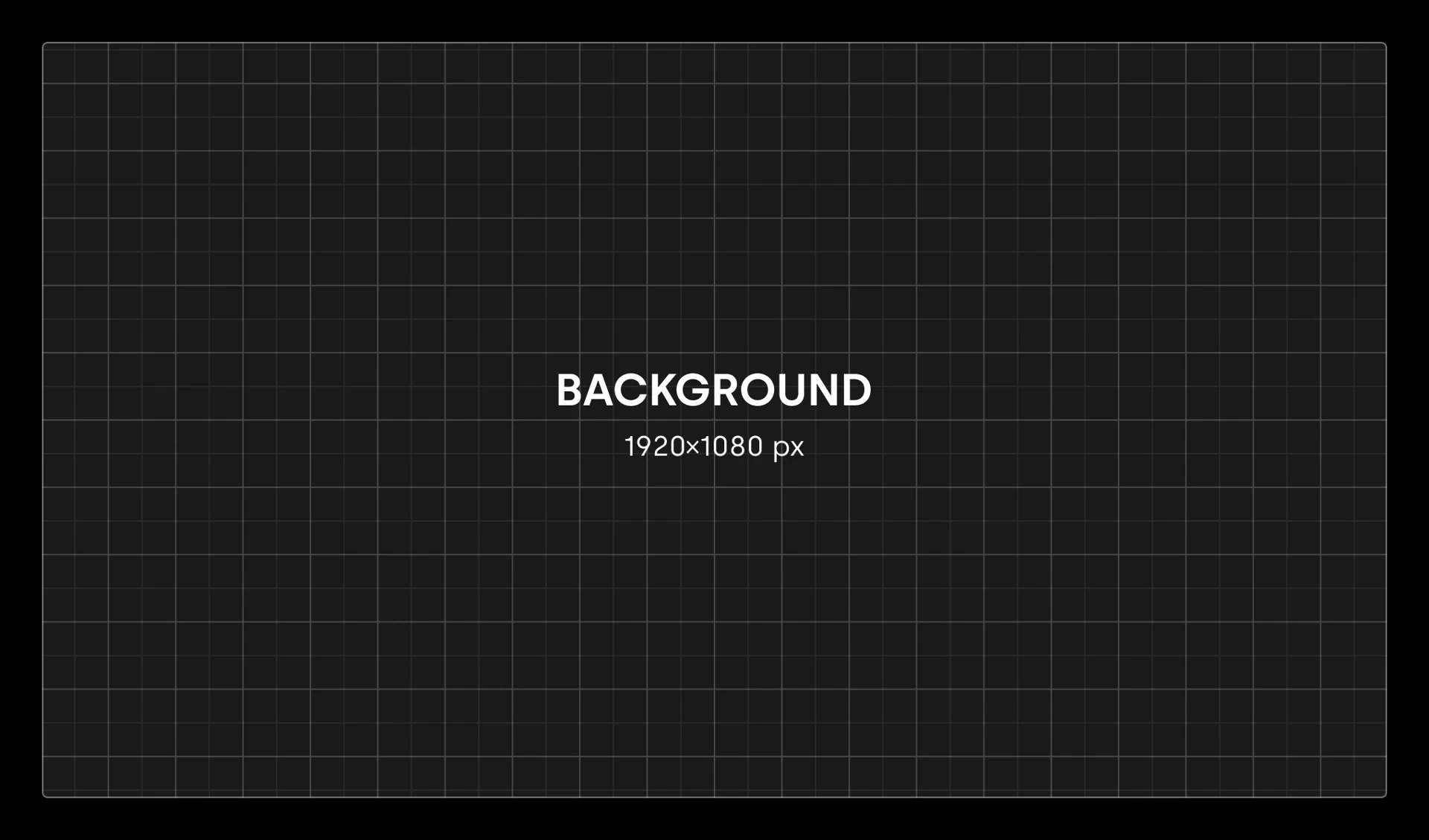

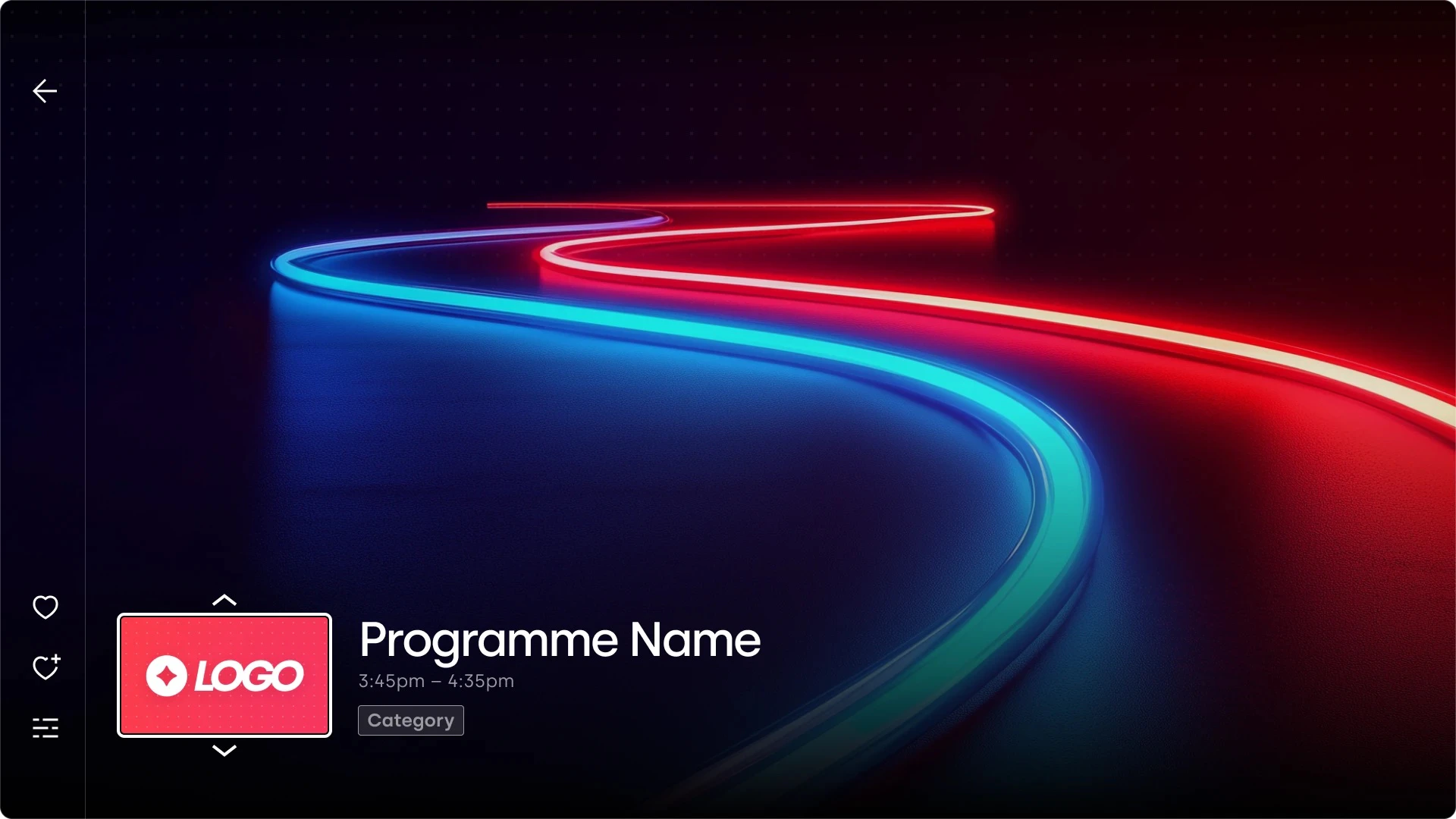

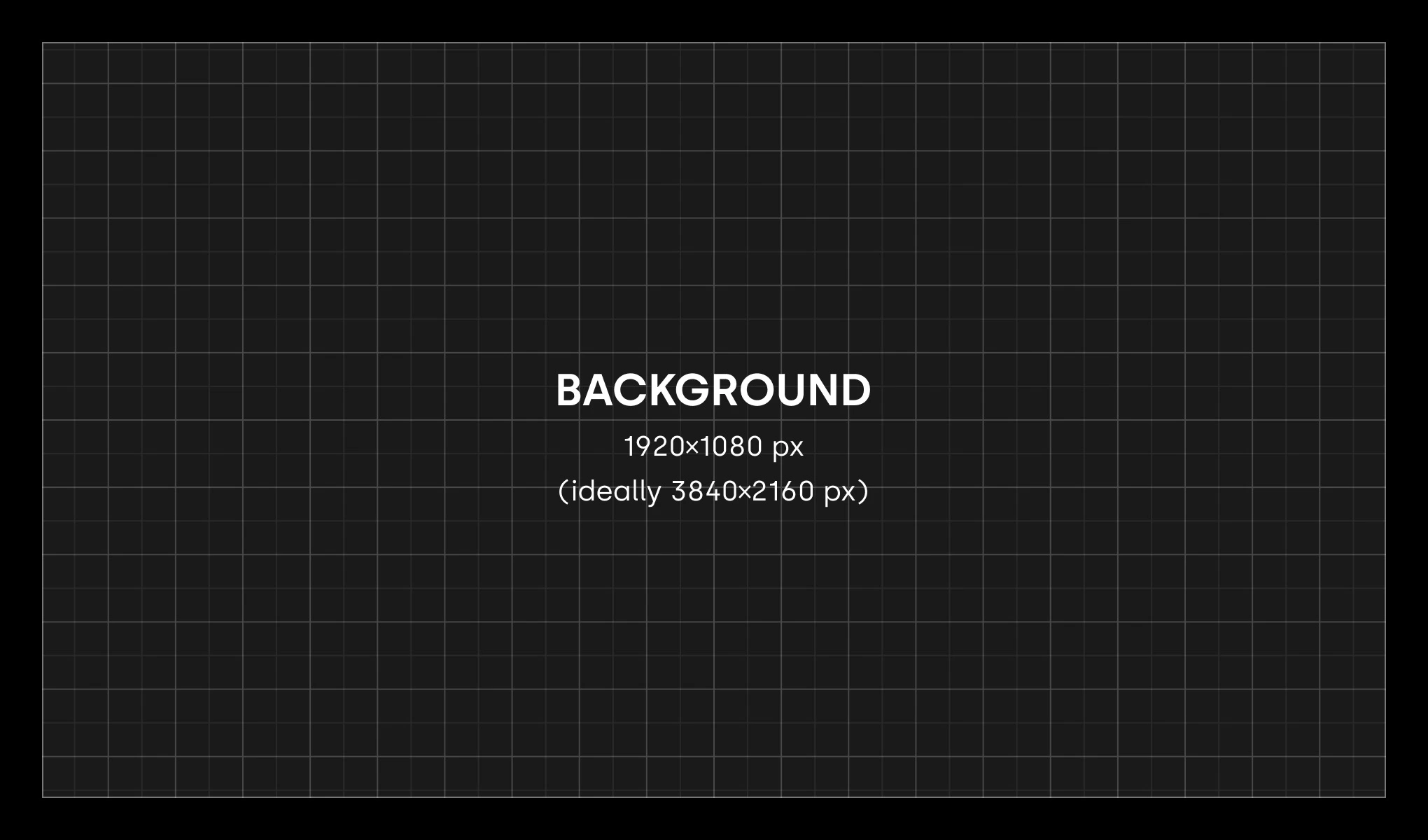

Background

The background image serves as a placeholder while the channel stream loads. It should reflect the channel’s theme subtly, without being overly distracting.

​
Requirements

  1. Format: JPG or PNG, No transparency
  2. Size: Exactly 1920x1080px ⚠️
  3. Aspect ratio: 16:9
  4. File size: Should not exceed 700Kb ⚠️

​
Design considerations

  • Avoid adding any text or elements that might appear interactive or clickable to prevent user confusion.
  • Avoid using solid colour fills. If a single-colour background is necessary, consider applying a gradient or pattern to add visual depth.
